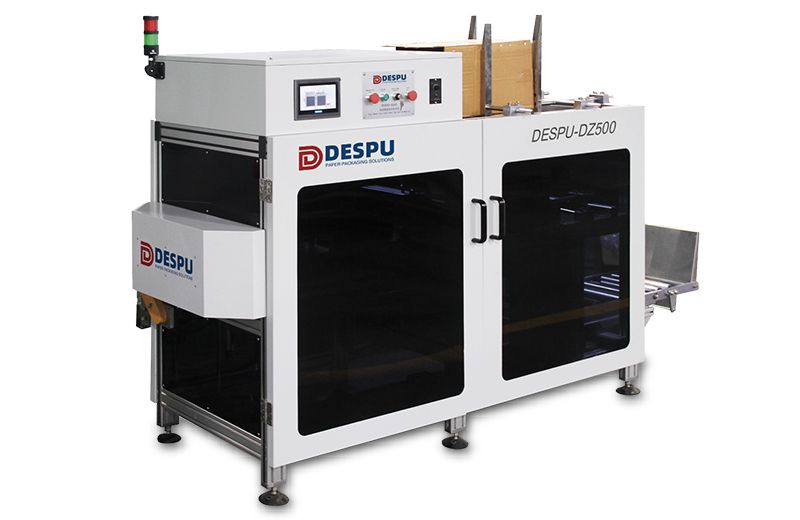

Automatic Case Packer, DESPU-DZ500

Suitable for paper cups packaging

Automatic Case Packer, DESPU-DZ500
Request a Quote
Production Efficiency
  • Output in every shift (8 hours) achieves 58,000 cups, and monthly output ( in 3 shifts) arrives 4.05 million cups.
  • Qualified rate is higher than 99% in normal production.
  • Machines can be processed simultaneously by single operator.
Quality Control
  • 3-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
  • Easy inspection and maintenance for parts on forming table.
  • All parts under forming table should be lubricated every four to six month with specified oil.
Request a Quote
Mechanical Properties

DESPU-DZ500 automatic case packer is available for automatic cup feeding, branch number identifying, box charging and discharging. It allows the connection with 4 paper cup forming machines and 1paper cup packaging machine, thus to develop fully automatic production line. Moreover, lifting height can be automatically adjusted in accordance with the cup top diameter and box size. Therefore, it is the best option for automatic production.

Specification
Model
DESPU-DZ500
Capacity 30 Cartons/Hr
Box Size 500*400*700mm
Paper Cup Size Ф 60-95mm（cup） Ф 95-150mm（bowl）
Power Three-phase, 220V, 2KW
Compressed Air 0.4MPa, 0.5m³/min
Weight 550kg
Packaging Box Size 1800*1600*2000mm
With more than 20 years experience in paper cup forming, DESPU develops, manufactures and markets paper cup forming machinery. Dedicated in providing complete solutions, DESPU helps you offer your customers best paper containers.With extensive research and development, it has successfully developed three generations of paper cup forming machines and now we are working for the forth. Get our paper cup forming solutions of highest quality and manufactured using the latest techniques to boost your global competition and enhance your product reputation in the market. As a highly innovative company, DESPU is able to produce varied paper cup and container forming machines, paper cup outer sleeve machines and auxiliary equipment. DESPU is devoted to meet your needs with excellent manufacturing capacities.
