Suitable for making square and specially shaped paper cups, 60-80 cups/min
Request a Quote
DESPU-C100 is specially designed for special-shaped cold and hot paper cups, including rectangle, square, non-circular and other shapes. It allows an output of 60-80 every minute.
Production Efficiency
Output in every shift (8 hours) achieves 28,000 cups, and monthly output ( in 3 shifts) arrives 2.20 million cups.
Qualified rate is higher than 95% in normal production.
Machines can be processed simultaneously by single operator.
Request a Quote
Quality Control
5-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
Easy inspection and maintenance for parts on forming table.
All parts under forming table should be lubricated every four to six month with specified oil.
Mechanical Properties
DESPU-C100 paper cup forming machine possesses a working table, which well separated driving part and molds, allowing easy cleaning and maintenance. Automatic lubricant spraying system, vertical shaft driving structure, cylindrical indexing CAM mechanism and gear driving system all help to ensure the stability and quality of this machine. Besides, DESPU-C100 also adopts PLC, photoelectric tracking and servo feed system to control the electronical parts.
Driving mechanism

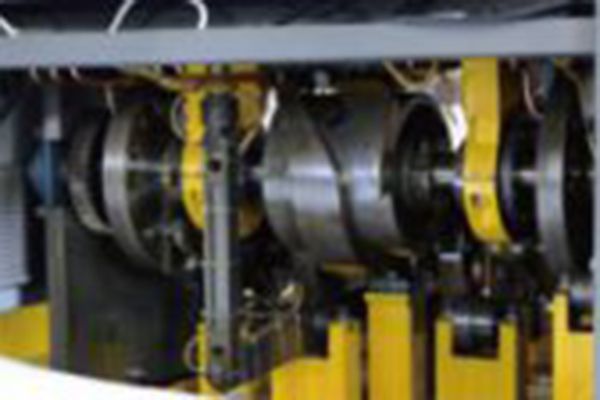

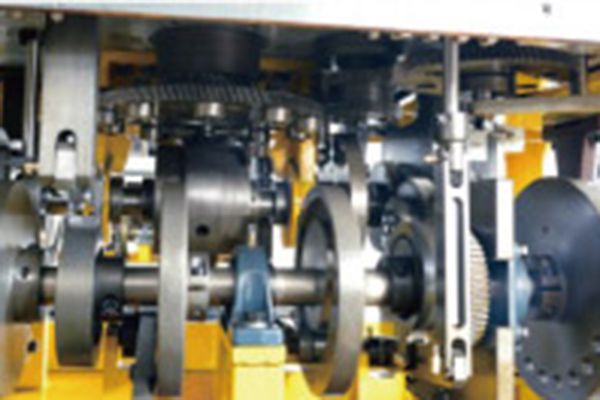

Longitudinal axis driving structure and cylindrical indexing CAM mechanism optimize inside structure and help to ensure high driving precision and excellent synchronization. In this way, the working of different parts can be well coordinated, thus to avoid disturbance of different working parts and to eliminate the chain joggling and driving instability.
Chassis Structure
Machine is designed with chassis structure, with welded ribs on its sides. Spaying lubrication is adopted to reduce wear and to improve cooling effect efficiently, thus to ensure the fast operation of this machine. 5-year warranty for the whole machine is provided (except wearing parts).

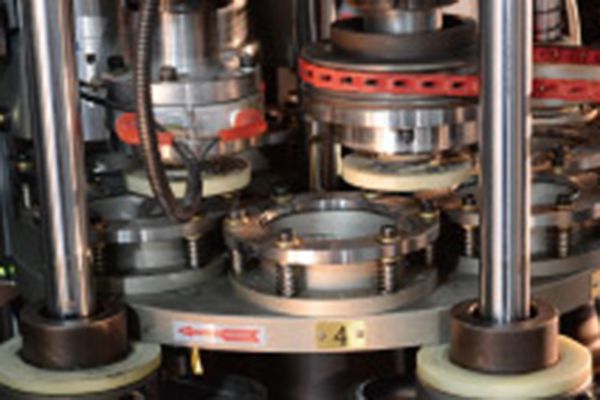

Double Curling

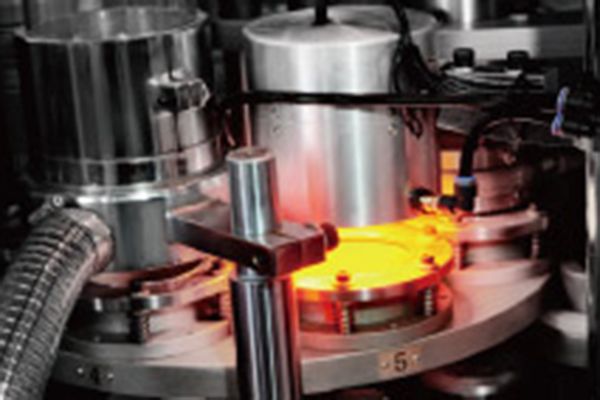

First curing adopts rotational moulding and expansion rings for high paper forming strength; Second curling adopts heating ring for better forming, perfect curling effect and even cup size.
Image Inspection System
1. From the top, stains and insects inside the cups or bowls, as well as the wearouts and wrinkles on the cup/bowl top can be easily detected.
2. From the bottom, stains, insects, warping in knurling areas and cup or bowl bottom, as well as yellowing and other problems can be easily detected.
Specification
Model
DESPU-C100
Output
60-80 pcs/min
Dimension(oz)
Application
Rectangle-shaped cold/hot drinks
Cup Shape
Paper Type
Single-coated PE/Double-coated PE/PLA
Paper Thickness
0.38-0.5mm
Cup Size

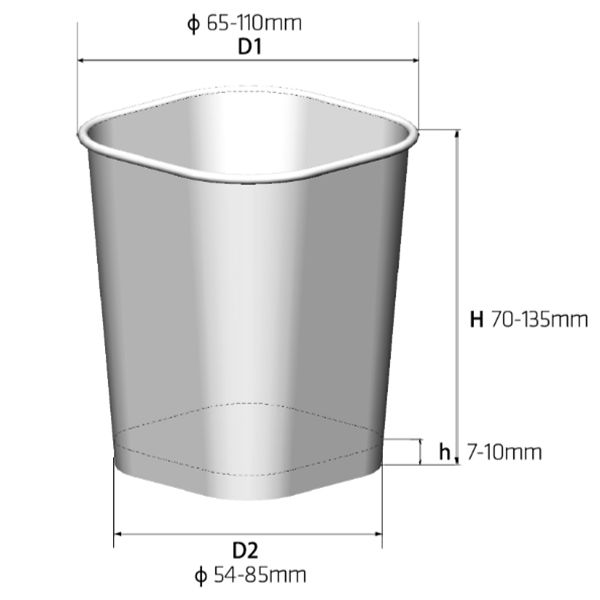

(D1)ф65-110mm (H)70-135mm (D2)ф54-85mm (h)7-10mm
Power
3-phase 380V，26KW
Compressed Air
0.6-0.8MPa，0.5m³/min
Inspection
○
Bottom Heating
Assembling●
Extended Paper Conveying
○
Control Panel
7inches
Weight
3300 kg
Packaging Box Size
Normal type: 3100 x 1600 x 2100mm （cup counting shelf: 1230 x 610 x 1900mm） Inspection type: 3100 x 1600 x 2250mm （cup counting shelf: 1230 x 610 x 1900mm）
Note: Optional Configuration ○ Standard Configuration ●
Process
Paper suction
Side heating
Folding/Sealing
Bottom feeding
Bottom heating 1
Bottom heating 2
Bottom curling
Bottom knurling
Oil dipping
Top curling 1
Top curling 2
Cup discharging
