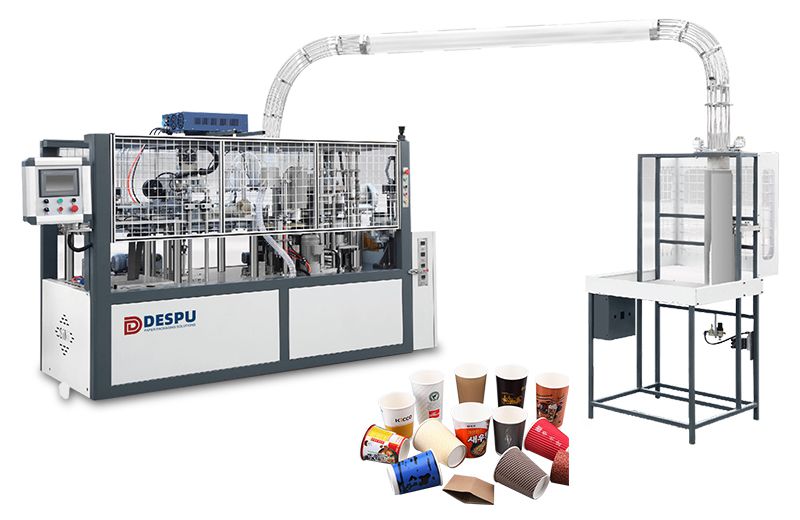

Suitable for making 6-44oz paper cups, 70-100 cups/min
Request a Quote
Advantages
The whole steel plate machine body, sandwich paper feeding and automatic lubrication system ensure long-term stable operation of the machine;
Double short-distance vertical shafts and advanced and high-precision open type cylinder cam driving help to achieve the high output and zero failure of this machine.
Single grooved cam mechanism and seesaw-type ejection rod allow the high speed and accuracy of paper feeding.
Specially designed￠490mm mold turning design lightens the work load and improves the working efficiency;
Request a Quote
Machine details

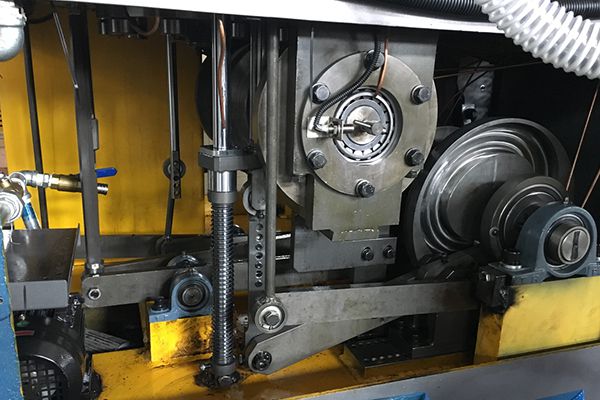

Open cam transmission system. Unique hanging cam design to reduce pollution.

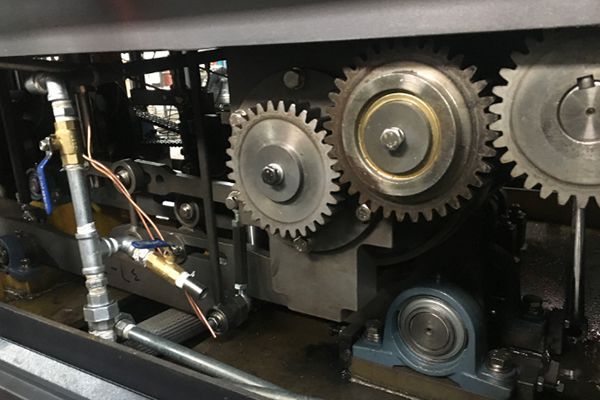

Automatic lubrication system. Save your labor and easier your daily work.

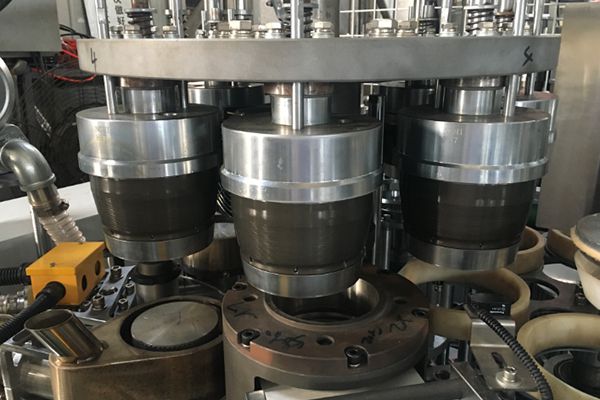

Aluminum Mold, longer using life with less abrasion.

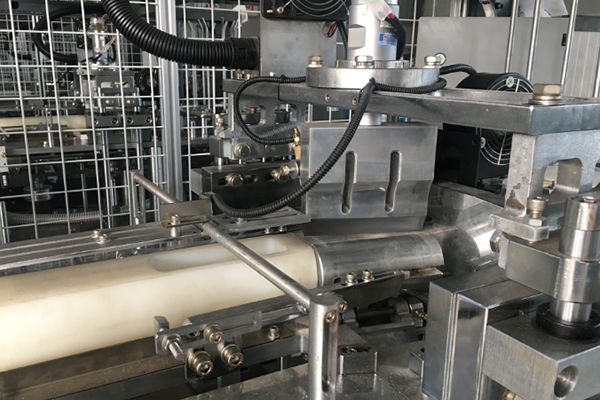

Ultrasonic unit guarantee fast and good quality sealing.

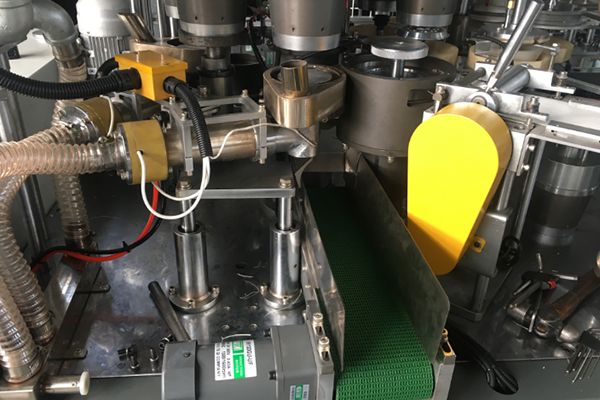

Bottom paper feeding uses servo motor.

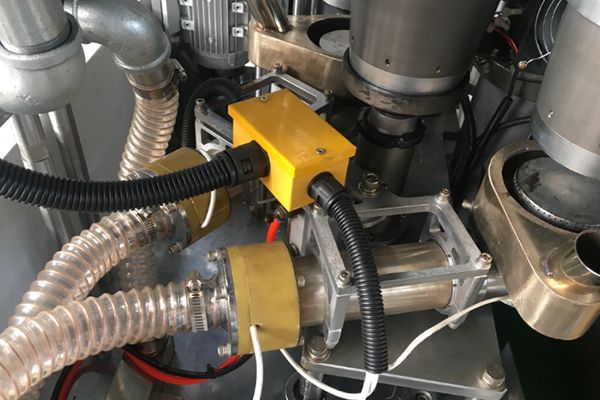

Using two heaters to heat up the bottom ensures the bottom sealing and guarantee high speed production.

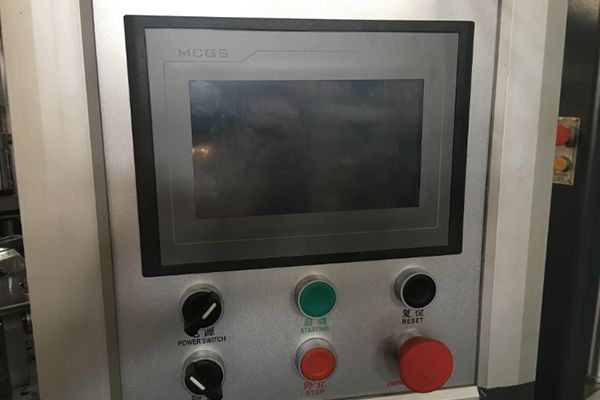

PLC control system
Specification
Model
DESPU-C100N
Cup size
6-44OZ
Raw material
Single and double PE coating paper
Paper thickness
Body: 160-300gsm Bottom: 150-230gsm
Top mouth diameter
90mm-140mm
Bottom diameter
80mm-115mm
Bottom depth
5mm-10mm
Height
45mm-110mm
Angle
4-8°
Capacity
70-100 pieces per minute
Main motor power
2.2kw
Total power
17.5kw
Energy consumption
9.5 kw / hour
air consumption
0.4m3/min, 0.5-0.8Mpa
Weight
3500kg
Dimension
2910x1400x1800mm
Electrical parts
NO.
Name
Brand
1
miniature circuit breaker
CHINT
2
AC contactor
CHINT
3
Power Module
Taiwan Mean Well
4
Small Relay
Omron
5
Touch Screen
China
6
Encoder
Schneider
7
Frequency Converter
Eura
8
PLC
China
9
Photoelectric Sensor
Panasonic
10
Approaching Switch
Omron
11
Button
Schneider
12
temperature controller
CHINT
With more than 20 years experience in paper cup forming, DESPU develops, manufactures and markets paper cup forming machinery. Dedicated in providing complete solutions, DESPU helps you offer your customers best paper containers.With extensive research and development, it has successfully developed three generations of paper cup forming machines and now we are working for the forth. Get our paper cup forming solutions of highest quality and manufactured using the latest techniques to boost your global competition and enhance your product reputation in the market. As a highly innovative company, DESPU is able to produce varied paper cup and container forming machines, paper cup outer sleeve machines and auxiliary equipment. DESPU is devoted to meet your needs with excellent manufacturing capacities.
