Suitable for making square and rectangular paper food containers, 50-70 containers/min
Request a Quote
Video
DESPU-B60 is mainly used for the production of PE/PLA or water-based barrier coating paper bowls.

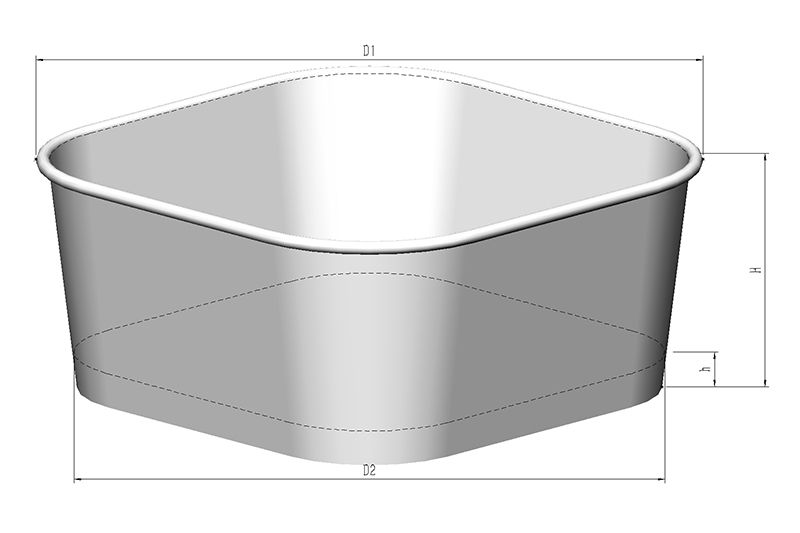

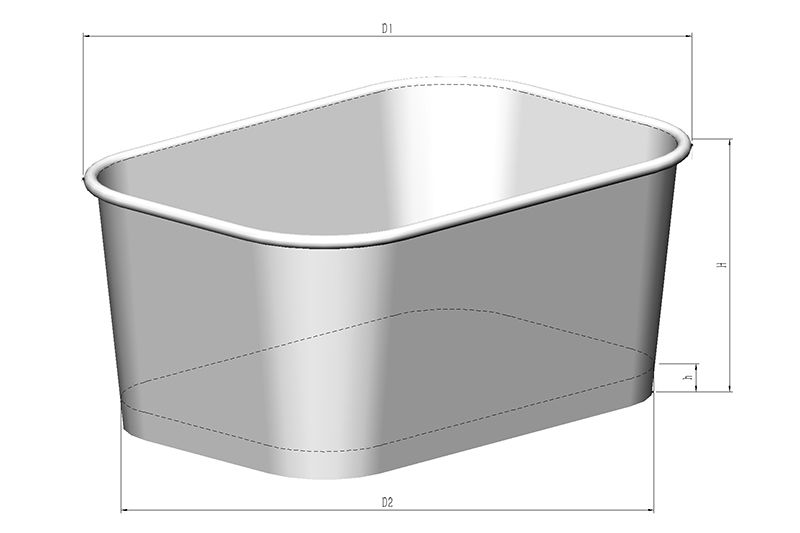

This machine is particularly suitable for the production of square and rectangular cold/hot paper bowls for food packaging, such as chicken wings, salads, pasta, etc. Its production capacity can reach 50-70 pcs/min.
Production Efficiency
Output in every shift (8 hours) achieves 24,000 cups, and monthly output ( in 3 shifts) arrives 1.85 million cups.
Qualified rate is higher than 99% in normal production.
Machines can be processed simultaneously by single operator.
Request a Quote
Video
Quality Control
5-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
Easy inspection and maintenance for parts on forming table.
All parts under forming table should be lubricated every four to six month with specified oil.
Mechanical Properties

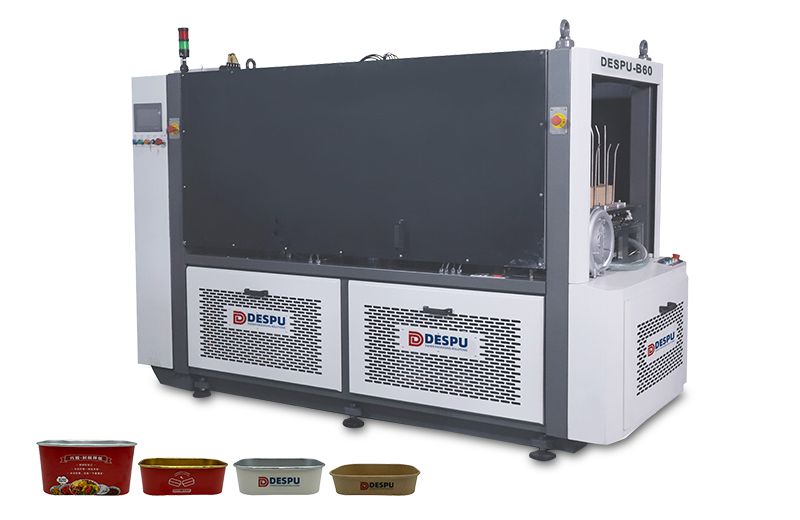

DESPU-B60 paper container forming machine possesses a working table, which well separated driving part and molds, and placing driving part inside the chassis under the table. Automatic lubricant spraying system, vertical shaft driving structure, cylindrical indexing CAM mechanism and gear driving system are all equipped. Formed molds can be set on the table, easy to be cleaned and maintained. Besides, DESPU-B60 also adopts PLC, photoelectric tracking and servo feed system to control the electronical parts.
Adopts inclined frame, the cup drop rate reaches99.99%
Flat head clamp is adopted to ensure effect of feeding paper smoothly.
Paper cup bottom conveyor can adjust automatically.
Die plate, paperboard plate and cup wall plate use aluminium material, they feature of light weight, good anti rotating inertia and long service life.
