Economical production of 1.5-12oz hot / cold beverage and packaging cups, 110-140 cups/min
Request a Quote

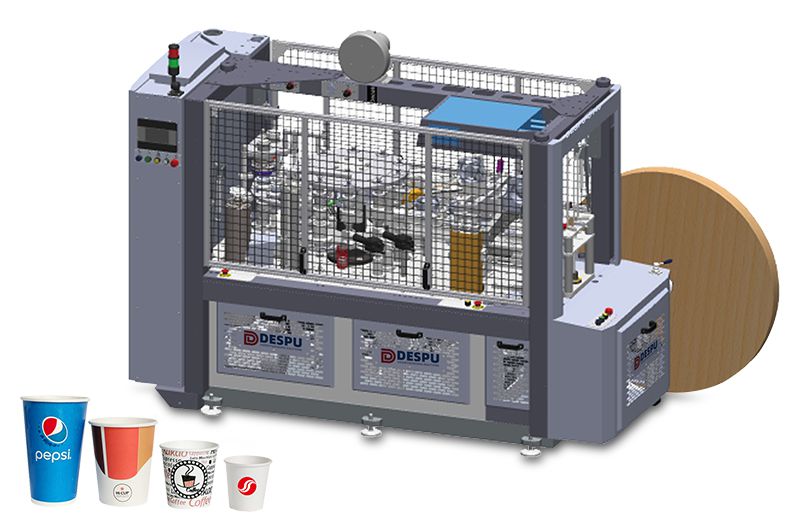

DESPU-C140 is most economic paper cup forming machine. It has stable working speed and attractive appearance. DESPU-C140 is perfect for producing yogurt cup, ice cream cup and other small cups with its capacity no higher than 12oz. This cup forming machine allows an output of 110-140 cold/hot cups of 1.5-12 oz every minute.
Production Efficiency
Output in every shift (8 hours) achieves 58,000 cups, and monthly output ( in 3 shifts) arrives 4.05 million cups.
Qualified rate is higher than 99% in normal production.
Machines can be processed simultaneously by single operator.
Request a Quote
Quality Control
3-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
Easy inspection and maintenance for parts on forming table.
All parts under forming table should be lubricated every four to six month with specified oil.
Mechanical Properties
DESPU-C140 possesses a working table, which well separated driving part and molds, allowing easy cleaning and maintenance. Automatic lubricant spraying system, vertical shaft driving structure, cylindrical indexing CAM mechanism and gear driving system all help to ensure the stability and quality of this machine. Besides, DESPU-C160S also adopts PLC, photoelectric tracking and servo feed system to control the electronical parts.
Bottom Punching
Side Forming
Gear Driving
Paper Feeding
Specification
Model
DESPU-C140
Output
110-140 pcs/min
Dimension(oz)
1.5-12 oz
Application
Coffee, tea, hot drinks
Cup Shape
Paper Type
Single-sided PE/double-sided PE/PLA
Paper Thickness
0.22-0.4075mm
Cup Size
(D1)ф50-85mm (H)40-110mm (D2)ф35-65mm (h)5-12mm
Power
3-phase 380V，20KW
Compressed Air
0.6-0.8MPa，0.4m³/min
Inspection
○
Bottom Heating
Assembling●
Extended Paper Conveying
○
Control Panel
7 inches
Weight
2700kg
Packaging Box Size
Normal type: 2600 x 1600 x 2100mm （Cup counting shelf: 1230 x 610 x 1900mm）
Note: Optional Configuration ○ Standard Configuration ●
Process
Paper suction
Side heating
Folding/Sealing
Bottom feeding
Bottom heating 1
Bottom heating 2
Bottom curling
Bottom knurling
Oil dipping
Top curling 1
Top curling 2
Cup discharging
With more than 20 years experience in paper cup forming, DESPU develops, manufactures and markets paper cup forming machinery. Dedicated in providing complete solutions, DESPU helps you offer your customers best paper containers.With extensive research and development, it has successfully developed three generations of paper cup forming machines and now we are working for the forth. Get our paper cup forming solutions of highest quality and manufactured using the latest techniques to boost your global competition and enhance your product reputation in the market. As a highly innovative company, DESPU is able to produce varied paper cup and container forming machines, paper cup outer sleeve machines and auxiliary equipment. DESPU is devoted to meet your needs with excellent manufacturing capacities.
