Suitable for making square and specially shaped paper cups with round bottoms, 60-80 cups/min
Request a Quote

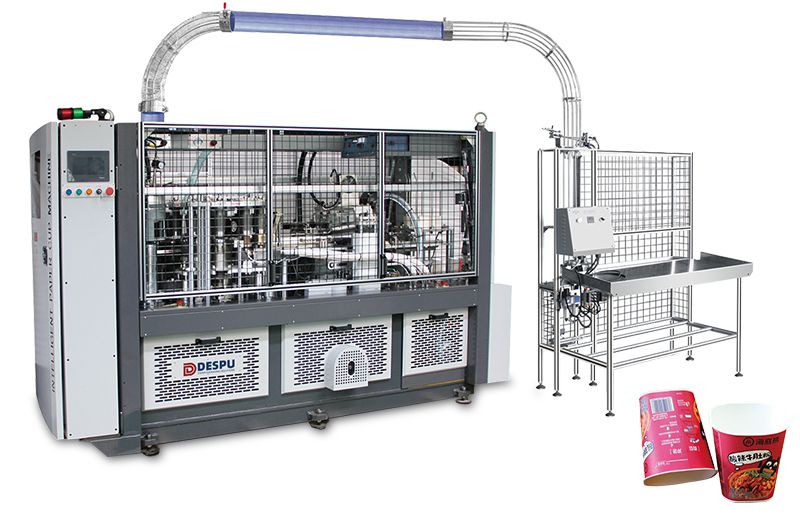

Slightly changed from DESPU-C100, DESPU-C100S is mainly designed for the manufacturing of hot and cold drink cups with round bottom and non-circular top, such as oval-shaped top, square-top and etc. This machine enjoys an output of 60-80pcs every minute.
Production Efficiency
Output in every shift (8 hours) achieves 28,000 cups, and monthly output ( in 3 shifts) arrives 2.20 million cups.
Qualified rate is higher than 95% in normal production.
Machines can be processed simultaneously by single operator.
Request a Quote
Quality Control
5-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
Easy inspection and maintenance for parts on forming table.
All parts under forming table should be lubricated every four to six month with specified oil.
Mechanical Properties
DESPU-C100S paper cup forming machine possesses a working table, which well separated driving part and molds, allowing easy cleaning and maintenance. Automatic lubricant spraying system, vertical shaft driving structure, cylindrical indexing CAM mechanism and gear driving system all help to ensure the stability and quality of this machine. Besides, DESPU-C100S also adopts PLC, photoelectric tracking and servo feed system to control the electronical parts.

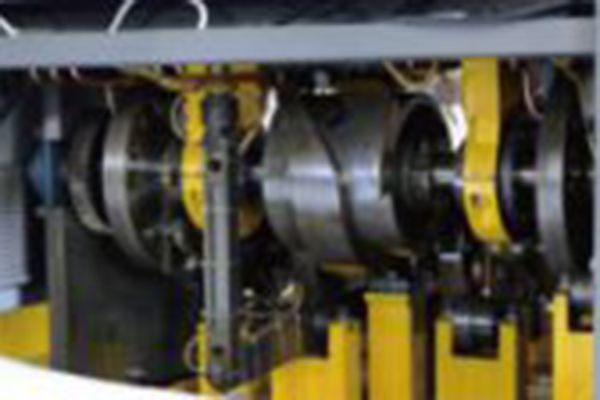

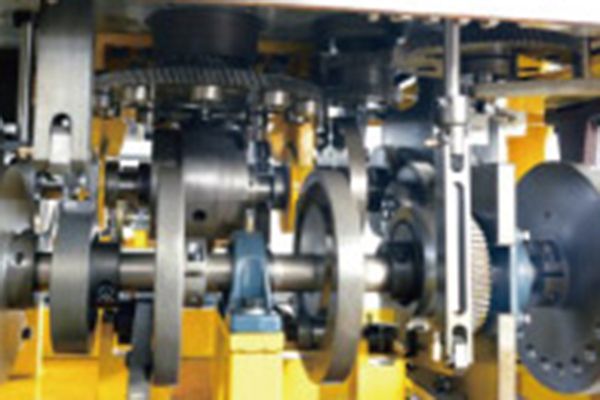

Driving mechanism
Longitudinal axis driving structure and cylindrical indexing CAM mechanism optimize inside structure and help to ensure high driving precision and excellent synchronization. In this way, the working of different parts can be well coordinated, thus to avoid disturbance of different working parts and to eliminate the chain joggling and driving instability.
Chassis Structure
Machine is designed with chassis structure, with welded ribs on its sides. Spaying lubrication is adopted to reduce wear and to improve cooling effect efficiently, thus to ensure the fast operation of this machine. 5-year warranty for the whole machine is provided (except wearing parts).

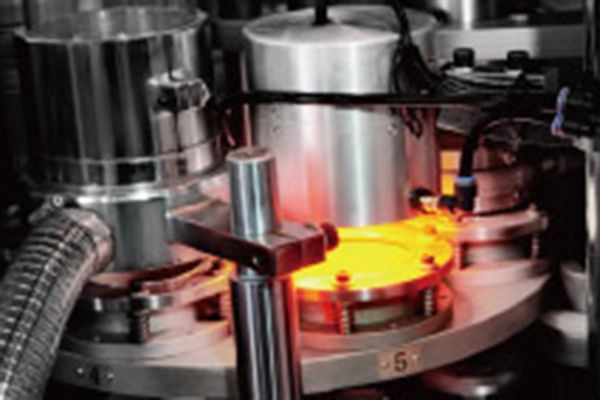

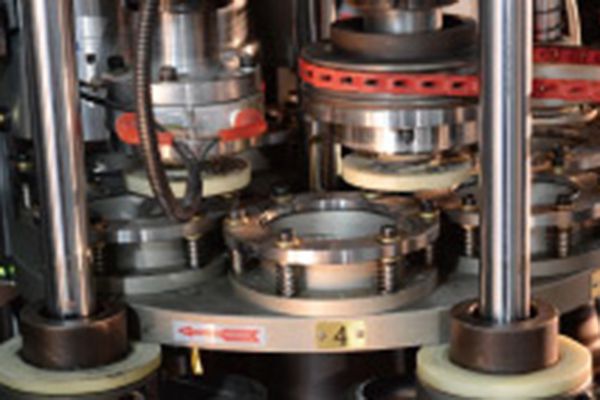

Double Curling
First curing adopts rotational moulding and expansion rings for high paper forming strength; Second curling adopts heating ring for better forming, perfect curling effect and even cup size.
Image Inspection System
1. From the top, stains and insects inside the cups or bowls, as well as the wearouts and wrinkles on the cup/bowl top can be easily detected.
2. From the bottom, stains, insects, warping in knurling areas and cup or bowl bottom, as well as yellowing and other problems can be easily detected.
Specification
Model
DESPU-C100S
Output
60-80 pcs/min
Dimension(oz)
no
Application
rectangle-shaped cold and hot drink cups
Cup Shape
Paper Type
Single-coated PE/double-coated PE/PLA
Paper Thickness
0.38-0.5mm
Cup Size

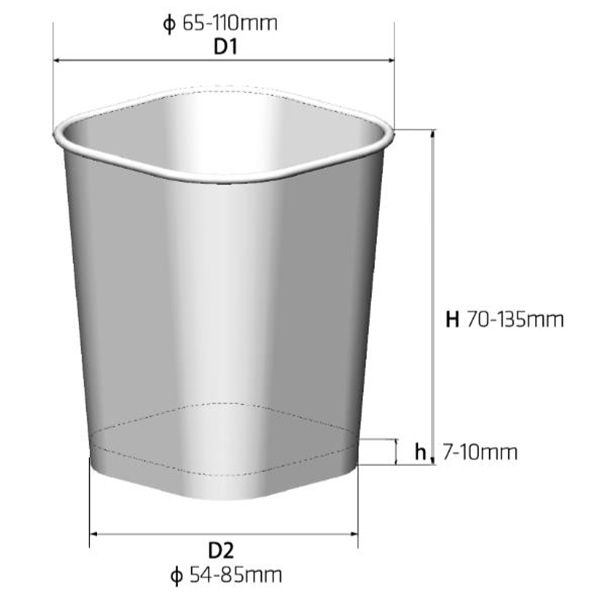

(D1)ф65-110mm (H)70-135mm (D2)ф54-85mm (h)7-10mm
Power
3-phase 380V，26KW
Compressed Air
0.6-0.8MPa，0.5m³/min
Inspection
○
Bottom Heating
Assembling●
Extended Paper Conveying
○
Control Panel
7 inches
Weight
3300 kg
Packaging Box Size
Normal type: 3100 x 1600 x 2100mm （cup counting shelf: 1230 x 610 x 1900mm） Inspection type: 3100 x 1600 x 2250mm （cup counting shelf: 1230 x 610 x 1900mm）
Note: Optional Configuration ○ Standard Configuration ●
Process
Paper suction
Side heating
Folding/Sealing
Bottom feeding
Bottom heating 1
Bottom heating 2
Bottom curling
Bottom knurling
Oil dipping
Top curling 1
Top curling 2
Cup discharging
With more than 20 years experience in paper cup forming, DESPU develops, manufactures and markets paper cup forming machinery. Dedicated in providing complete solutions, DESPU helps you offer your customers best paper containers.With extensive research and development, it has successfully developed three generations of paper cup forming machines and now we are working for the forth. Get our paper cup forming solutions of highest quality and manufactured using the latest techniques to boost your global competition and enhance your product reputation in the market. As a highly innovative company, DESPU is able to produce varied paper cup and container forming machines, paper cup outer sleeve machines and auxiliary equipment. DESPU is devoted to meet your needs with excellent manufacturing capacities.
