Paper Cup Outer Sleeve Forming Machine, DESPU-W140

Suitable for making paper coffee sleeves and insulated ripple sleeves

Paper Cup Outer Sleeve Forming Machine, DESPU-W140
Request a Quote

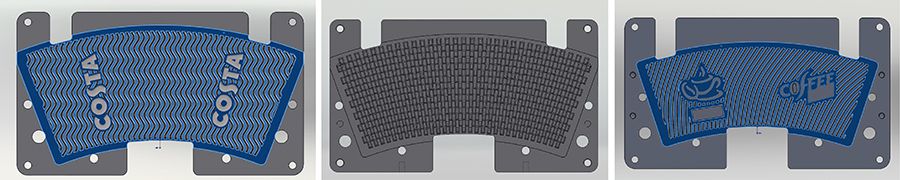

DESPU-W100 is ideal for producing milk tea cups, instant noodle cups, coffee cups, corrugated cups and other jacket forming machines. Used together with the C series paper cup machine, it can produce air-insulated double-walled coffee cups, as well as insulated cups with embossed jacket tubes. This machine allows the production 150pcs of of 8-22oz cups every minute.

Production Efficiency
  • Output in every shift (8 hours) achieves 38,000 cups, and monthly output ( in 3 shifts) arrives 3.00 million cups.
  • Qualified rate is higher than 99% in normal production.
  • Machines can be processed simultaneously by single operator.
Request a Quote
Quality Control
  • 5-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
  • Easy inspection and maintenance for parts on forming table.
  • All parts under forming table should be lubricated every four to six month with specified oil.
Mechanical Properties

Cylinder cam drive, gear driving, vertical shaft are well equipped for multiple functions. Spray lubrication is adopted for whole machine. PLC control, photoelectric tracking and servo feed system are applied for the electronical parts.

    1. Paper Cup Outer Sleeve Forming Machine, DESPU-W140

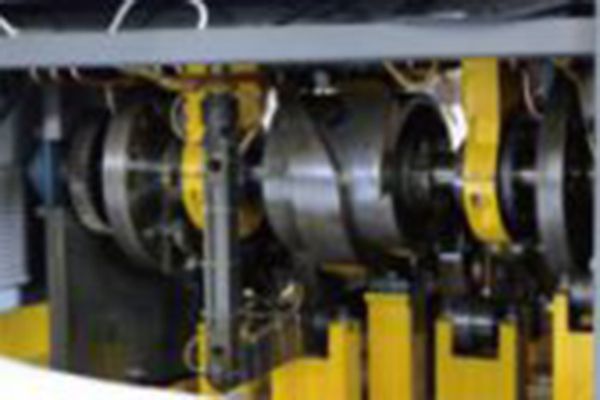

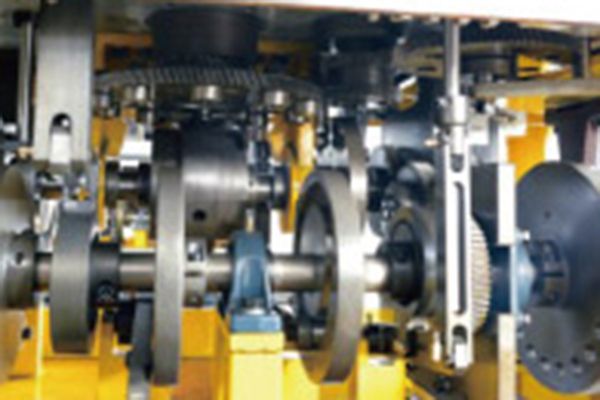

    2. Vertical axis adopts gear drive, cylindrical cam optimizes internal layout, all of these can ensure the transmission accuracy of this paper cup making machine, improve the synchronization performance, so as to achieve the coordination of the stroke, and avoid component damaged.

    1. Paper Cup Outer Sleeve Forming Machine, DESPU-W140

    2. This high speed paper cup machine is designed with box type structure, oil spray and oil lubrication can reduce wear and tear, and heat effectively, so that the machine achieves rapid operation.

    1. Paper Cup Outer Sleeve Forming Machine, DESPU-W140

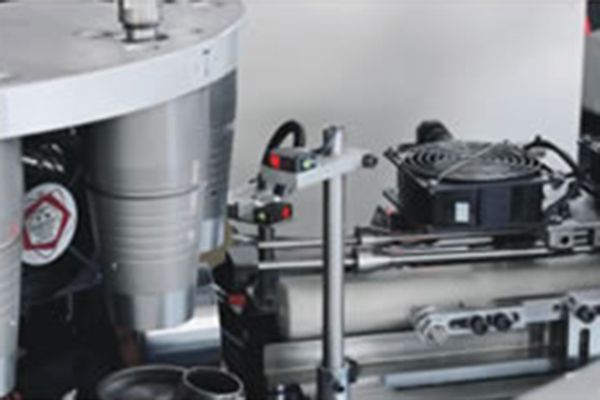

    2. The paper cup making process is controlled by PLC, optical eye monitoring system is adopted, servo control system is used to control feeding the cup bottom, if there is no cup wall, the system will not convoy the cup bottom.

    1. Paper Cup Outer Sleeve Forming Machine, DESPU-W140

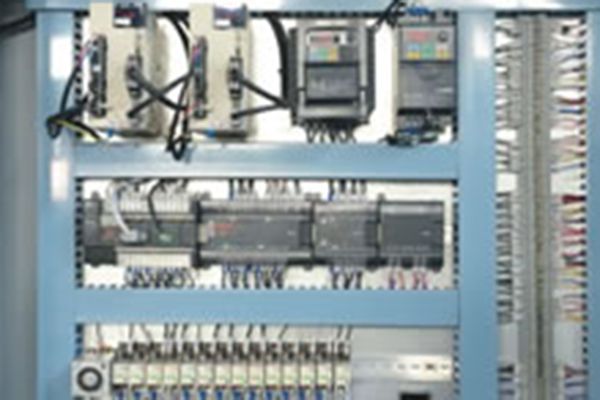

    2. All electrical components are from OMRON and Schneider. The control system adopts PLC programmable controller and touch screen human-machine interface.

    1. Paper Cup Outer Sleeve Forming Machine, DESPU-W140

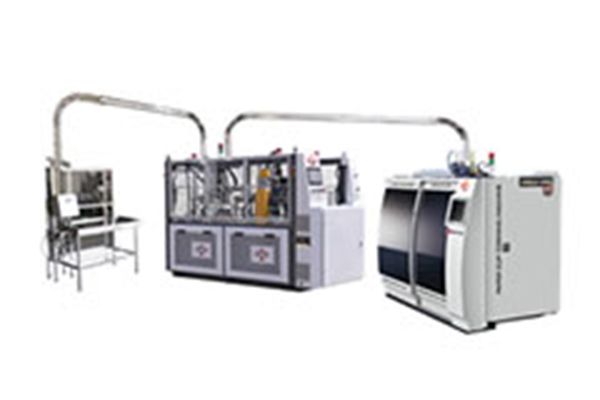

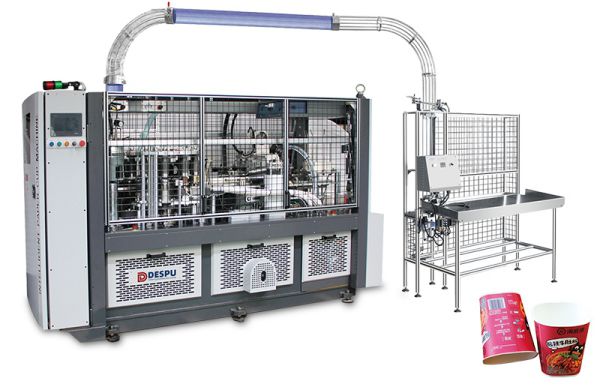

    2. Gluing machine is working with paper cup machine, the paper cups will be conveyed to the gluing machine through pipeline for forming.

Paper Cup Outer Sleeve Forming Machine, DESPU-W140
Paper Cup Outer Sleeve Forming Machine, DESPU-W140
Specification
Model
DESPU-W140
Output Middle hollow, flat pasting：120-150 pcs/min
Double-wall corrugated paper：80-100 pcs/min
Single-wall corrugated paper：60-80pcs/min
Dimension(oz) 8-22oz
Application Milk tea cups, instant noodle cups, coffee cups, corrugated cups and other jacket molding

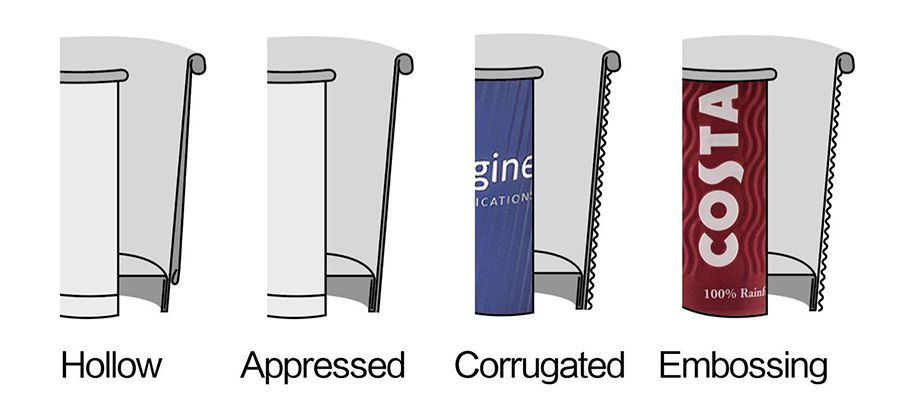

Cup Shape
Paper Type Grey Bottom White Board/ White Card
Paper Thickness 0.2825-0.4075mm
Single-wall corrugated paper：0.245-0.2825mm
Cup Size (D1)ф70-95mm (H)60-135mm (D2)ф50-75mm (h)5-12mm
Power 3-phase 380V、5KW
Compressed Air 0.6-0.8MPa、0.4m³/min
Paper Feeding ○
Control Panel 7 inches
Weight 2300kg
Packaging Box Size 2900 x 1400 x 2100mm


Note: Optional Configuration ○ Standard Configuration ●
