Suitable for making 16-22oz large hot / cold drink paper cups, up to 120 cups/min
Request a Quote

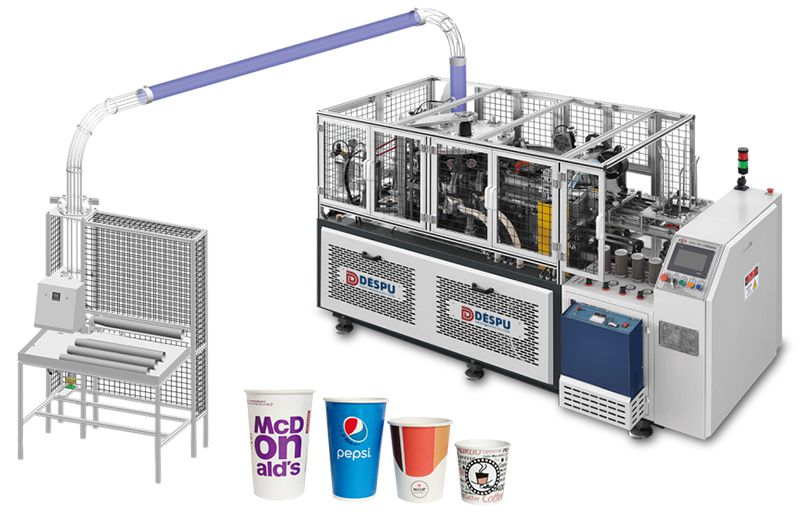

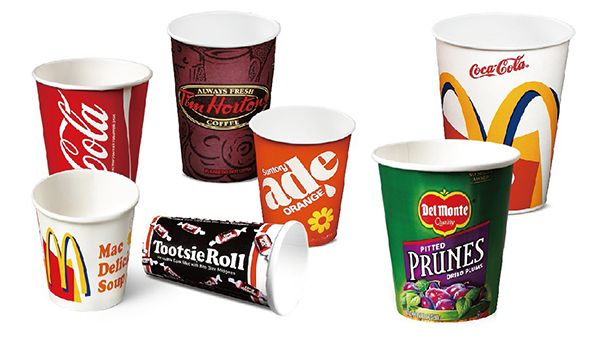

DESPU-C120S is the practical type of DESPU-12O, especially suitable for producing all kinds of paper cups with large capacity, able to contain various cold and hot drinks, such as coffee, coke, milk tea, ice cream and milk. It can produce 120pcs with the capacity of 16-22oz.
Production Efficiency
Output in every shift (8 hours) achieves 58,000 cups, and monthly output ( in 3 shifts) arrives 4.05 million cups.
Qualified rate is higher than 99% in normal production.
Machines can be processed simultaneously by single operator.
Request a Quote
Quality Control
5-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
Easy inspection and maintenance for parts on forming table.
All parts under forming table should be lubricated every four to six month with specified oil.
Mechanical Properties
DESPU-C120S paper cup forming machine possesses a working table, which well separated driving part and molds, and placing driving part inside the chassis under the table. Automatic lubricant spraying system, vertical shaft driving structure, cylindrical indexing CAM mechanism and gear driving system are all equipped. Formed molds can be set on the table, easy to be cleaned and maintained. Besides, DESPU-C120S also adopts PLC, photoelectric tracking and servo feed system to control the electronical parts.
Bottom Punching
Side Forming
Gear Driving
Paper Feeding
Specification
Model
DESPU-C120S
Output
120-150 pcs/min
Dimension(oz)
16---22 oz
Application
coffee, tea, hot drinks
Cup Shape
Paper Type
Single-sided PE/double-sided PE/PLA
Paper Thickness
0.295-0.445mm
Cup Size
(D1)ф60-95mm (H)50-135mm (D2)ф40-75mm (h)5-12mm
Power
3-phase 380V，24KW
Compressed Air
0.6-0.8MPa，0.5m³/min
Inspection
○
Bottom Heating
Assembling●
Extended Paper Conveying
○
Control Panel
7 inches
Weight
3100 kg
Packaging Box Size
Normal Type: 2900 x 1600 x 1900mm （Cup counting shelf: 1230 x 610 x 1900mm） Inspection Type: 2900 x 1600 x 2250mm （Cup counting shelf: 1230 x 610 x 1900mm）
Note: Optional Configuration ○ Standard Configuration ●
Process
Paper suction
Side heating
Folding/Sealing
Bottom feeding
Bottom heating 1
Bottom heating 2
Bottom curling
Bottom knurling
Oil dipping
Top curling 1
Top curling 2
Cup discharging
