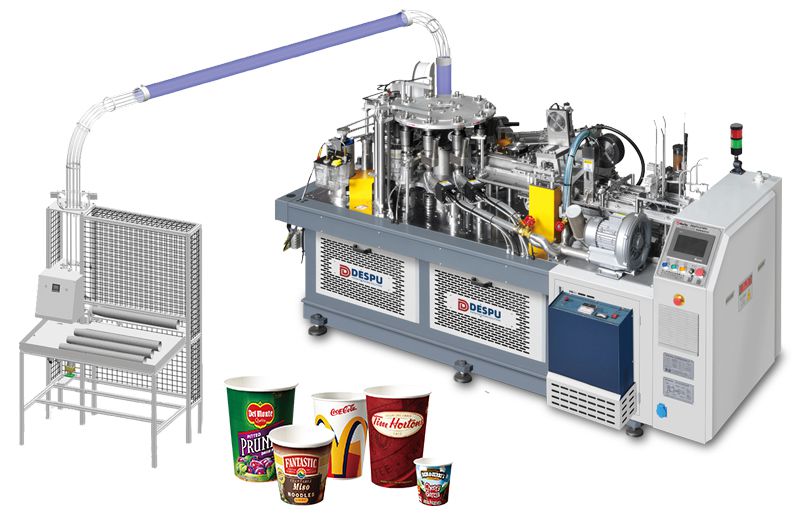

Compact machine for making 1.5-12oz hot / cold beverage and packaging cups, 110-140 cups/min
Request a Quote
Video
DESPU-C140S is the practical type of DESPU-14O, especially suitable for new cup forming manufacturers who has relatively loose production cycle. This machine requires relatively low previous investment and small space for installation and operation. It can produce 110-140 pcs of cold and hot drink cups with the capacity of 1.5-12oz.
Production Efficiency
Output in every shift (8 hours) achieves 57,000 cups, and monthly output ( in 3 shifts) arrives 3.70 million cups.
Qualified rate is higher than 99% in normal production.
Machines can be processed simultaneously by single operator.
Request a Quote
Video
Quality Control
3-year warranty for driving part, and 1-year warranty for electronical parts and wearing parts.
Easy inspection and maintenance for parts on forming table.
All parts under forming table should be lubricated every four to six month with specified oil.
Mechanical Properties
DESPU-C140S paper cup forming machine possesses a working table, which well separated driving part and molds, and placing driving part inside the chassis under the table. Automatic lubricant spraying system, vertical shaft driving structure, cylindrical indexing CAM mechanism and gear driving system are all equipped. Formed molds can be set on the table, easy to be cleaned and maintained. Besides, DESPU-C140S also adopts PLC, photoelectric tracking and servo feed system to control the electronical parts.
Bottom Punching
Side Forming
Gear Driving
Paper Feeding
Specification
Model
DESPU-C140S
Output
100-120 pcs/min
Dimension(oz)
1.5-12oz
Application
coffee, tea, hot drinks
Cup Shape
Paper Type
Single-sided PE/ Double-sided PE/PLA
Paper Thickness
0.22-0.4075mm
Cup Size
(D1)ф50-85mm (H)40-110mm (D2)ф35-65mm (h)5-12mm
Power
3-phase 380V，20KW
Compressed Air
0.6-0.8MPa，0.4m³/min
Inspection
○
Bottom Heating
Assembling●
Extended Paper Conveying
○
Control Panel
7 inches
Weight
2500kg
Packaging Box Size
Normal type：2600 x 1600 x 1900mm （paper counting shelf: 1230 x 610 x 1900mm）
Note: Optional Configuration ○ Standard Configuration ●
Process
Paper suction
Side heating
Folding/Sealing
Bottom feeding
Bottom heating 1
Bottom heating 2
Bottom curling
Bottom knurling
Oil dipping
Top curling 1
Top curling 2
Cup discharging
