Paper Cup Making Machine DEBAO-D16

Paper Cup Making Machine <span>DEBAO-D16</span>
Paper Cup Making Machine <span>DEBAO-D16</span>

DEBAO-D16 paper cup forming machine is a multi station automatic machine, its working process includes automatic paper feeding, sealing, oiling, punching, heating, knurling, rolling, edge curling, discharging, etc. It is an ideal equipment for making paper cup, advertising cup, ice cream cup and so on. It has high production capacity, which reaches 60-75pcs/min.

Technical Parameters
Model DB-D16 Paper Cup Machine
Cup size A : Top diameter: 60~95mm
B : Height: 70~135mm
C : Bottom diameter: 45~75mm
D : Bottom depth: 5~12mm
Applicable paper 150-350gsm (single or double PE coated paper)
Production speed 60-75pcs/min
Power supply 10KW 380V 50Hz
Compressed air 0.2m3/min, air source request (double PE): 0.5-0.8Mpa
Weight 1500KG
Overall dimensions (L*W*H) 2450*1150*1750mm

Features
1. The machine frame is welded by rectangular pipe and U-steel channel, with large strength and small deformation. All of the connecting rods are reinforced, which adopt double bearing structure and operate stably.
2. The open type indexing cam is adopted to ensure high precision, high output, and long service life.
3. Paper feeding system uses middle speed mechanism and cam, manipulator is used for conveying paper cup wall, so as to reduce the stroke, increase the speed, and makes the paper cup making machine more stable.
4. Paper cup bottom forming system adopts drawing die to make forming effect good and reduce the leakage probability.
5. Knurling assembly is made of alloy steel, with high output and high precision, it is an ideal choice for high weight paper and deep bottom paper cups.
6. With humanized design, this paper cup forming machine is equipped with safety protection device.

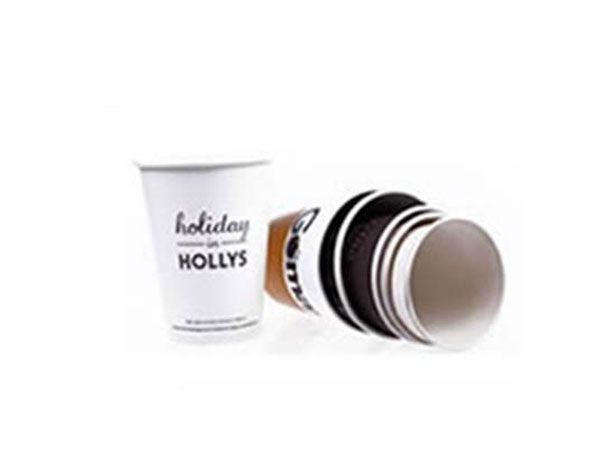

Our paper cup maker is widely used in advertising paper cups, milk tea paper cups, disposable paper cup, coffee paper cup, etc.

More Details

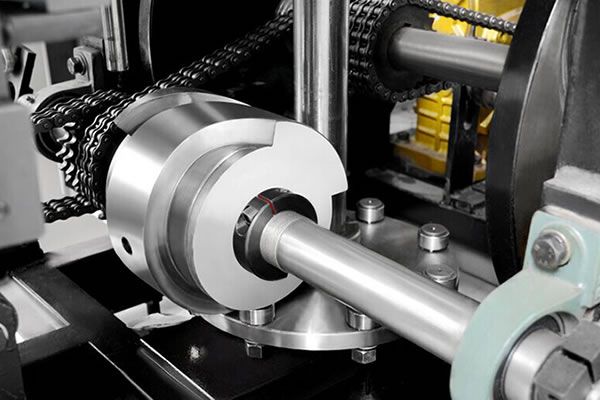

  • The open type indexing cam is adopted to ensure high precision, high output, and long service life.

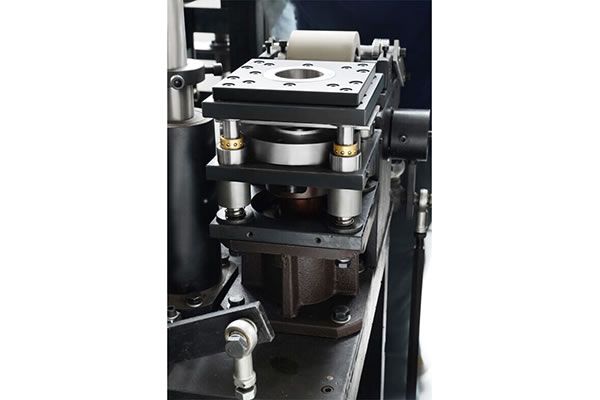

  • Paper cup bottom forming system adopts drawing die to make forming effect good and reduce the leakage probability.

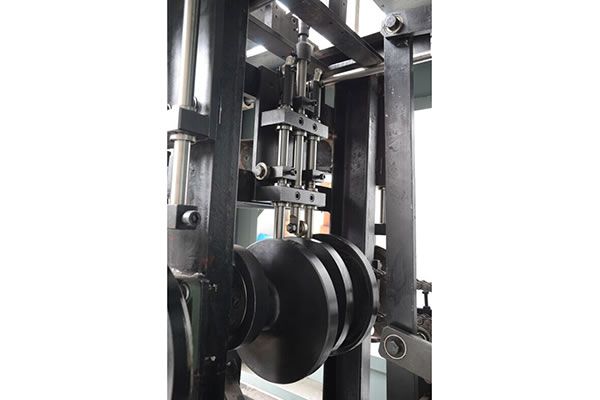

  • Paper feeding system uses middle speed mechanism and cam, manipulator is used for conveying paper cup wall, so as to reduce the stroke, increase the speed, and makes the paper cup making machine more stable.

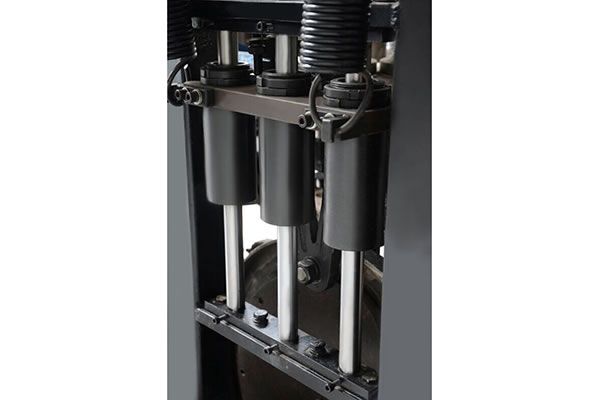

  • Three-shaft linkage is adopted to ensure the operation strength of machine and which makes the operation of machine more stable.

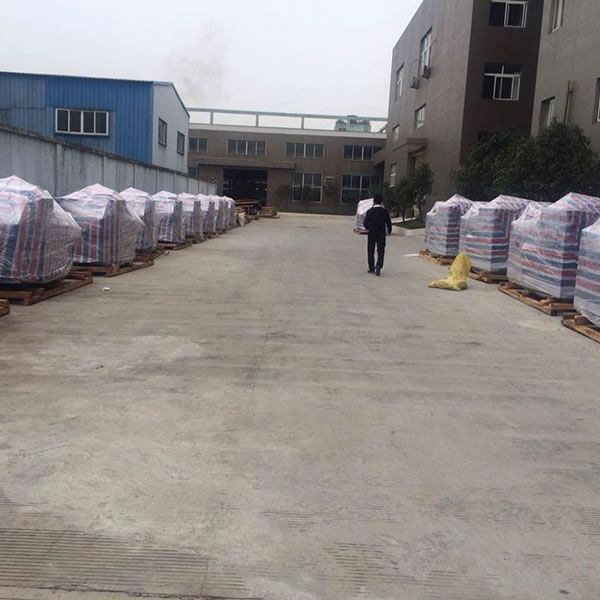

Machine Packaging and Transportation
